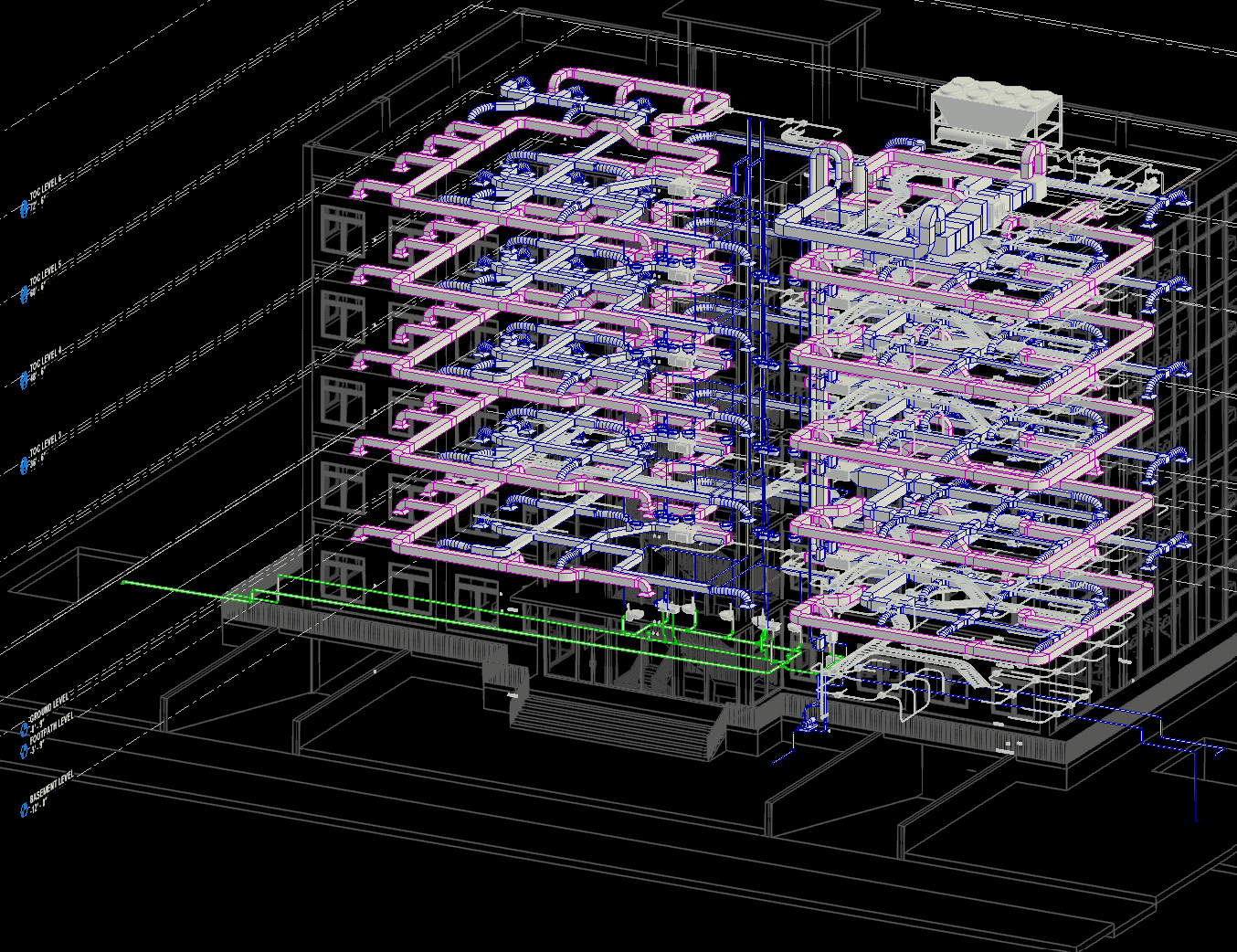

MEP modeling involves developing and integrating mechanical, electrical, and plumbing systems into a building information modeling (BIM) environment. This process uses existing architectural and structural models to create a coordinated design. A key part of this is clash detection, where software is used to identify and resolve conflicts between the different building systems before construction begins
Project Overview
We provide exterior rendering services for both residential and commercial buildings. Our goal is to create realistic visualizations that effectively showcase the architectural design, material finishes, and the surrounding environment. These renders are crucial for client approvals, marketing, and sales efforts.
Our Process
Revit Modeling: We start by creating precise 3D Revit models for different building types, from villas to commercial blocks.
Site Integration: We seamlessly incorporate all site elements, including boundary walls, pathways, parking areas, and landscaping, to create a complete and realistic scene.
Photorealistic Rendering: The models are then imported into D5 Render. We apply realistic textures, lighting, and environmental settings to achieve a true-to-life look.
High-Quality Output: We generate multiple high-quality renders from various camera angles and with different lighting setups (day and evening) to give you a comprehensive view of your project.
.jpg)
BIM for MEP coordination is a process that uses a 3D digital model of a building to integrate and coordinate the mechanical, electrical, and plumbing (MEP) systems. It is a critical step in the pre-construction phase that helps to identify and resolve potential issues and conflicts before construction begins.
This process involves:
Planning clash-free layouts: Using BIM software like Navisworks, teams can automatically detect and resolve clashes between different systems, such as a duct running into a structural beam.
Space requirement planning: The 3D models allow for better visualization and optimization of space for all building components.
Interdisciplinary coordination: BIM facilitates real-time collaboration and information sharing among architects, engineers, and contractors, ensuring all teams are working from a single, shared model.
Revit family creation: BIM software like Revit is used to create detailed 3D models of MEP systems, which can then be used to generate shop drawings and other construction documents.
Our Approach
Model Setup and Validation: We begin by loading a standardized BIM template for MEP, based on the project’s specific requirements for mechanical, electrical, plumbing, and fire protection services. We then validate the architectural and structural models to ensure consistent coordinates before linking them, a crucial step for accurate integration.
MEP Model Development: Each discipline's model—including HVAC, electrical, and plumbing—is prepared with all necessary elements before being linked to the central file. This step allows us to develop detailed, data-rich 3D models of all systems.
Clash Detection: We use BIM software like Autodesk Navisworks to automatically run clash detection tests. This pinpoints conflicts between different systems, such as a duct running through a structural beam or a pipe intersecting an electrical conduit.
Review and Resolution: Once clashes are identified, we review them and develop a plan to resolve each conflict within the Revit file. This virtual resolution process avoids expensive on-site rework and delays. Our approach fosters a collaborative culture, allowing teams to review the consolidated model and resolve issues together.
Deliverables and Finalization: After all clashes are resolved, we export the clash-free model to provide clients with a fully integrated design. From this model, we generate accurate shop drawings and schedules, ensuring all construction documents are consistent and reliable. This proactive approach reduces errors and improves overall project efficiency.
The primary benefits of this approach are:
Reduced Rework: Catching clashes in the design phase prevents costly on-site errors and delays.
Improved Collaboration: A single, central model ensures that all teams—including architects and engineers—are working with the same information, which improves communication.
Enhanced Efficiency: The ability to visualize and plan a "clash-free" layout streamlines the construction process.
